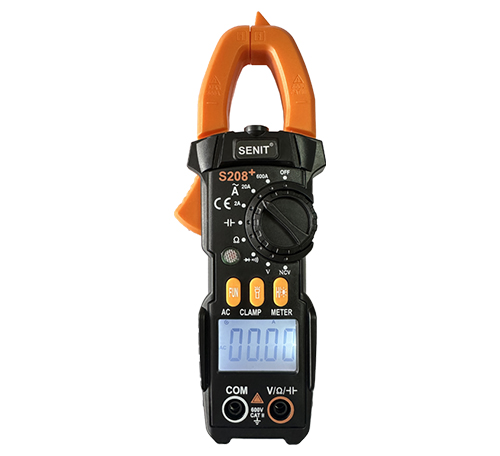

SNT208+
Features:
1. 4000 counts
2. Large LCD screen with white backlight
3. Data hold, Flashlight
4. AC/ DC Currenttest
5. AC Voltagetest
6. Capacitance test
7. NCV Test
8. Resistance Test
OEM is available
Test Mode Range Accuracy
DC Voltage (V) 400mV/4V/40V/400V/600V ±(1.0%+3)
AC Voltage (V) 4V/40V/400V/600V ±(1.5%+3)
AC Current (A) 2.000A/20.00A/600.0A ±(2.5%+3)
Resistance 400/4k/40k/400k/4MΩ ±(1.2%+3)
40.00MΩ ±(1.5%+5)
Capacitance 4uF ±(2.5%+10)
4uF-400uF ±(4.0%+20)
4mF ±(5.0%+30)
Diode Yes
Continuity Yes
NCV Test Yes
Standard Accessories: 1.5V Battery * 2pcs
Test Lead * 1 pair
Standard Packing: English User Manual , Gift Box
