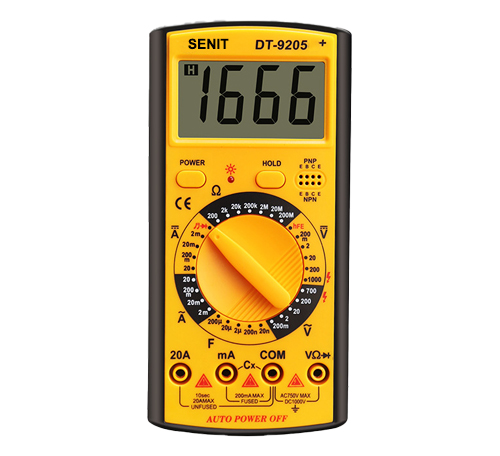

DT-9205A+
Product Type: DT9205A+
Overview: DT9205A+ is a digital multimeter with high-reliability and stable. It can be used to measure AC voltage, DC voltage, DC current, AC current, resistance, capacitors, continuity test, diode test etc. The handle held design is the best choice for field work, laboratories, factories, and other applications.
Specifications:
|
Function
|
Range
|
Accuracy
|
|
Voltage DC
|
200mV/2V/20V/200V/1000V
|
±(0.5%+3)
|
|
Voltage AC
|
200mV/2V/20V/200V/700V
|
±（0.8%+3）
|
|
Current DC
|
2mA/20mA/200mA/20A
|
±(1.0%+3)
|
|
Current AC
|
2mA/20mA/200mA/20A
|
±(2.0%+3)
|
|
Resistance
|
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20 MΩ/200 MΩ
|
±(0.8%+3)
|
|
Capacitance
|
20nF/200nF/2μF/20μF/200μF
|
±(4.0%+3)
|
|
Diode test
|
|
YES
|
|
Triode test
|
|
YES
|
|
On-off test
|
|
YES
|
|
Auto power off
|
|
YES
|
|
Data hold
|
|
YES
|
|
Low battery display
|
|
YES
|
Features:
a. 3 1/2 LCD Display
b. Auto power off
c. Capacitance test
d. Stream line design
Accessory: 9V battery, instruction manual
Application: family, laboratory, factory, field work etc.
